Renumbering

Supported Categories

  • MEP Fabrication Ductwork
  • MEP Fabrication Pipework
  • MEP FabricationHangers

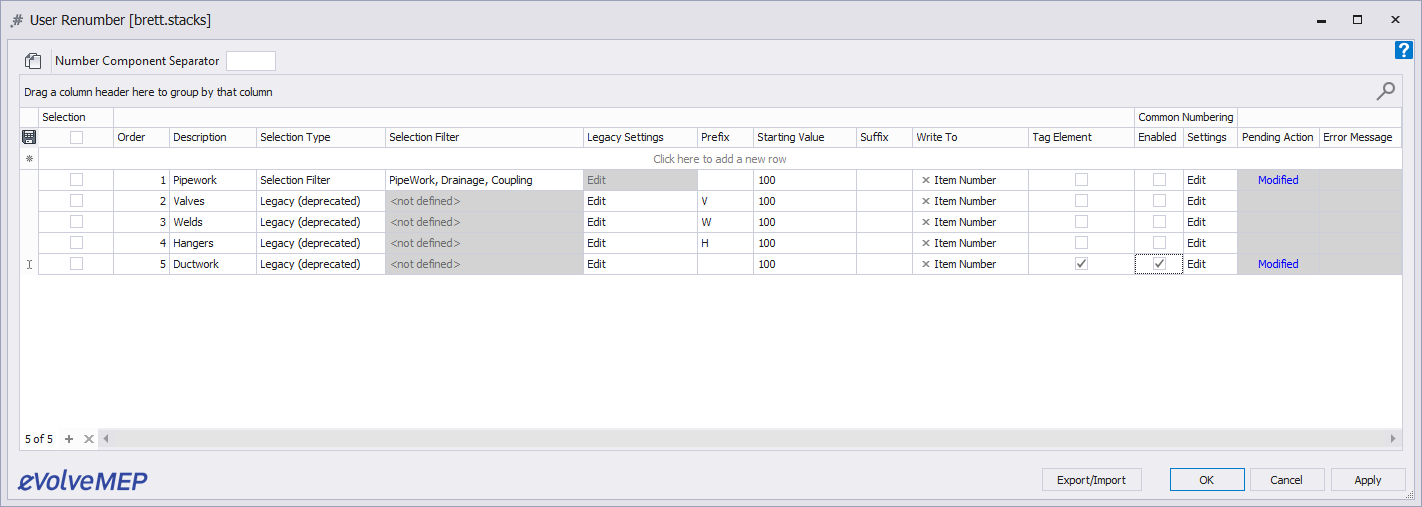

  1. Rules: Customized rules for your company database
  • Description - Describe the purpose of the rule
  • Prefix - Prefix added to each number in this rule
  • Starting Number - Numerical value to be sequenced, will display the next available number
  • Suffix - Suffix added to each number in this rule
  • Straight - Yes/No - Enable to include Straights in this rule.
  • Fitting - Yes/No - Enable to include Fittings in this rule.
  • Service Type(s) - Free entry Service Type input, for multiple Service Types separate the input by a semicolon.
  • Pattern ID(s) - Free entry CID input, for multiple CID's separate the input by a semicolon.
  • Item Name(s) - Free entry part name input, for multiple part names separate the input by a semicolon.
  1. Options:
  • Number Component Separator: Symbol to separate Prefix from Number from Suffix, leave empty if no separator is desired.
  • Select Objects to Specify Order: This option will take your selection to a temporary view and require you to pick each individual element to define the order.
  • Select Run to Specify Order: This option will take your selection to a temporary view and require you to pick the start and end point of the run to define the order direction.
  • Tag Items: Apply a tag based on the current family in Load Tags and Symbols
  • Append Service Abbreviation: Prefix the Item Number results with the Fabrication Service Abbreviation

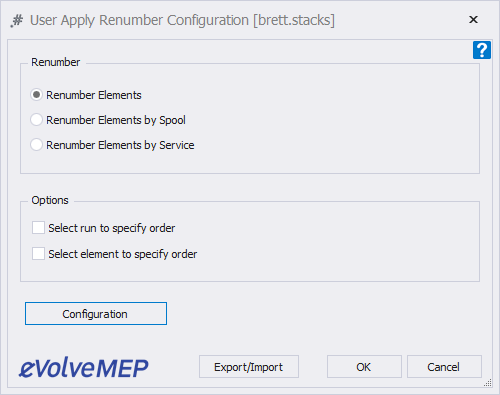

  • Renumber Elements: Default grouping of elements based on user defined rules
  • Renumber Elements by Spool: Run the rule set against each spool in the selection, resetting the starting value with each spool
  • Renumber Elements by Service: Run the rule set against each spool in the selection, resetting the starting value with each Service Name
  1. Use Same Number for Identical Parts: When enabled, all parts with matching properties will receive the same number regardless of order. Enabling this feature also enables the "Ignore Properties" options
  • Ignore Properties: setting these tells the software to ignore differences in the selected properties when looking for matching elements to receive the same number.
  1. Write to Properties: Select which properties to write the item number too.
  • Item Number - Fabrication parameter that will go with an .maj export of the model components.
  • Fabrication Notes - Fabrication parameter that will go with an .maj export of the model components.
  • Mark - Revit parameter that will NOT go with an .maj export of the model components.
  1. Selection Filter: Pre-built filters for quicker selection of elements, set current the type of component you want to renumber
  • Pipe Only
  • Pipe Fittings Only
  • Pipe Straights Only
  • Duct Only
  • Duct Fittings Only
  • Duct Straights Only
  • Hangers Only
