eVolve Mechanical v2.0
Updated 4 months ago
by
Brett Stacks
Release Date: June 3, 2019
Resources
- Downloads: http://evolvemep.com/downloads
- Feedback and ideas: https://www.evolvemep.com/evolve-mechanical-ideas/
- Support: https://myportal.asti.com/CreateNewCase.aspx
Compatibility
- Autodesk® Revit® 2018.3
- Autodesk® Revit® 2019.2
- Autodesk® Revit® 2020
New Features
Hangers
- Hangers can now be extended to structure or a specific reference plane
- Hanger rods can now receive an upper attachment family

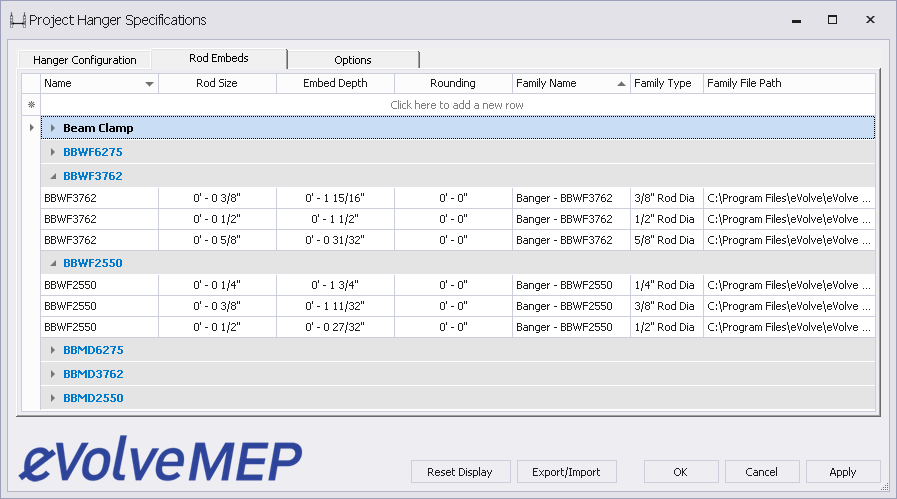

- Hanger rods can now be extended into structure

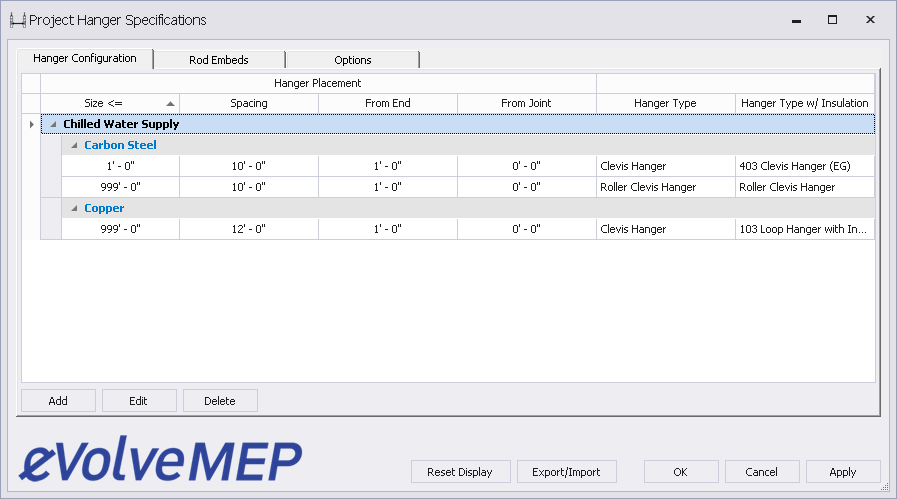

- Hanger Specification rules now have an option to be controlled by Service
- Hanger Specification rules now have an option to place a different support on part with insulation
Spooling

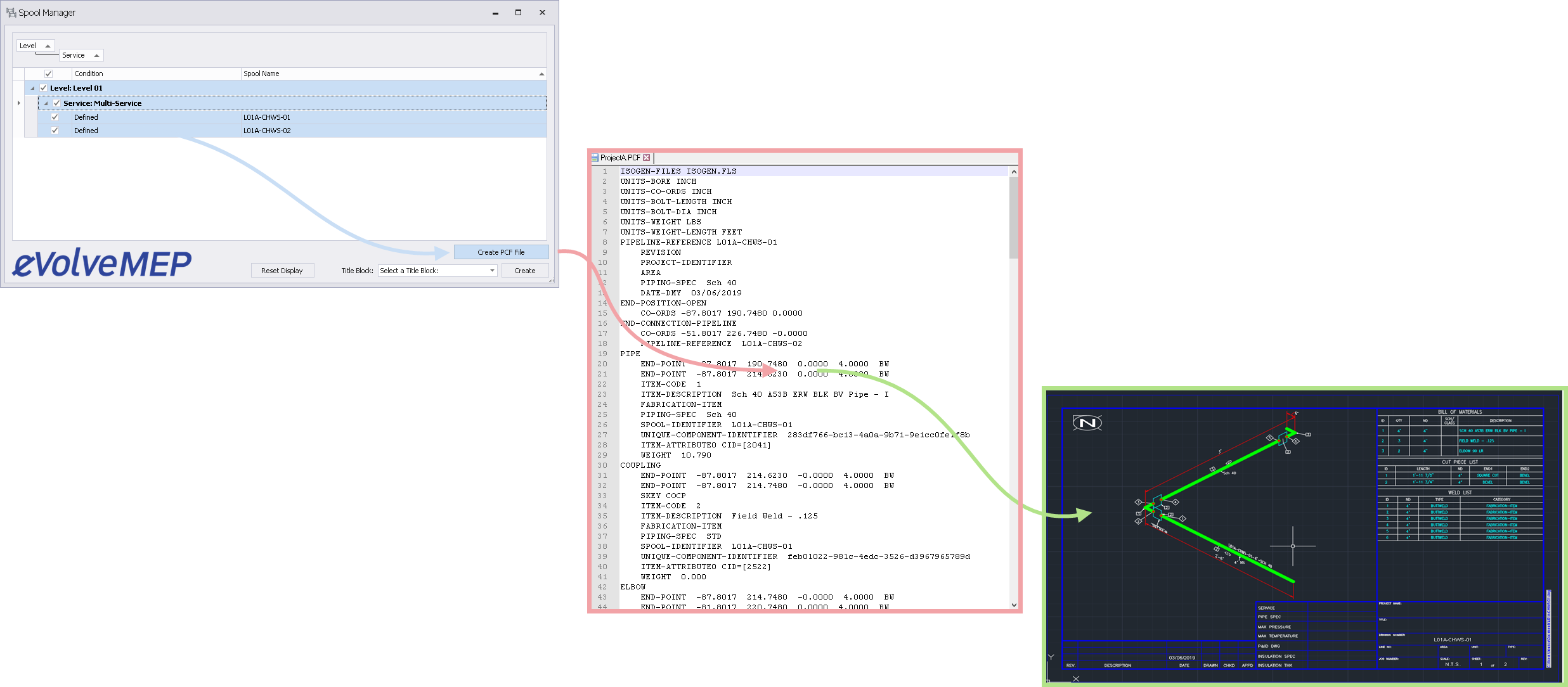

- Export spools to PCF in Spool Manager
Enhancements
General
- Rod Diameter is now available in the "Dimensions" section of the eVolve Properties grid
- eVolve grids now sort numbers in proper numerical sequence
- eVolve Properties grid defaults to Realtime Sync turned on in new models
Hangers
- Hanger Specifications dialog renamed to Project Hanger Specification
Spooling
- Significant improvements to auto-dimensioning
