Assign Level

Assign Level

Summary

The Assign Level tool allows elements to be copied, moved, or reassigned to different levels.

  • eVolve tab ⮞ Quick Tools panel ⮞ Assign Level button

Usage

  1. From the eVolve ribbon, in the Quick Tools panel, click Assign Level.

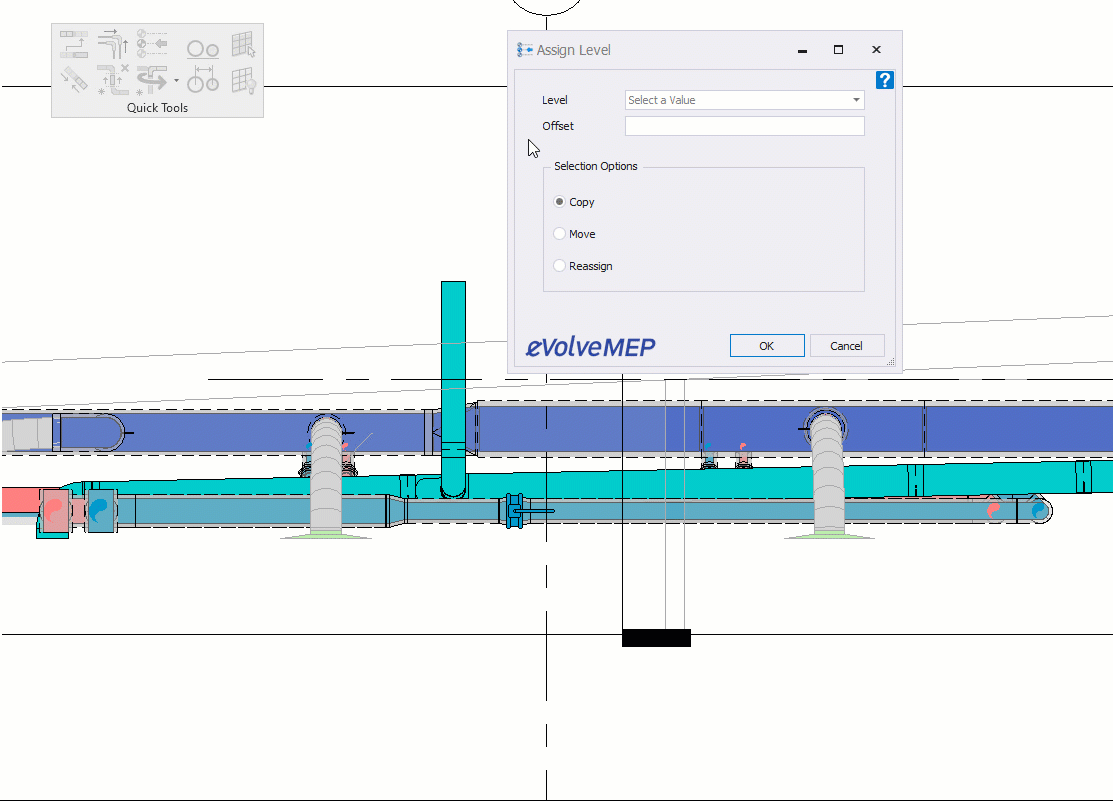

  2. From the Assign Level window,
    1. Select the Level.
    2. Specify an Offset, if undefined, the element(s) will retain their current elevation value.
    3. Pick the Selection Option.
  3. From the drawing area, select the desired element(s) for level assignment and click Finish.

NOTE: The Assign Level's predefined selection filter can be modified via the Selection Configuration. Please see the link in the Relevant Articles below.

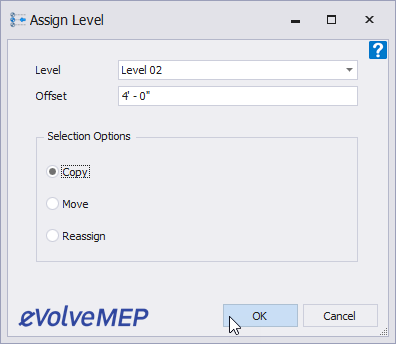

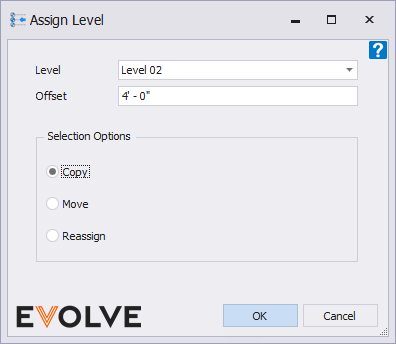

Window Overview

  • Level menu - displays a list of available levels in the model.
  • Offset dialog box - optional, used to specify an offset value applied to elements that are copied, moved, or reassigned to another level.

Selection Options panel

  • Copy - duplicates the selected elements to the specified level and optional elevation offset.
  • Move - transfers the selected elements to the specified level and optional elevation offset.
  • Reassign - sets level for all selected elements.
