Hanger Placement

Feature Summary

This feature allows you to automatically place single service fabrication supports such as clevis hangers for pipe and strap hangers for ductwork using the fabrication (ITM) database configuration and eVolve's spacing rules through Hanger Settings

Feature restrictions and support:
  • This feature will only place fabrication (ITM) hangers
    • Supported Patterns
      838
      1238
      1239
      1240
      1241
      1242
      1243
      1244
      1245
      1246
      1247
      1248
      1249
      1250
  • The hanger type referred to in the rule must exist within the services loaded in the project.
  • This feature currently only supports fabrication duct/pipe runs.
  • Automatic collision detection and correction (if enabled)
  • Automatic connectivity to structure
  • Insert Placement / Rod Adjustments
  • Automatic Point Placement

Video Summary

Hanger Placement

For performance, it is recommended to run Hanger Placement in a 3D view.

To use the Hanger Placement tool make sure you have fabrication parts already in your model.

  1. Configure the Hanger Settings

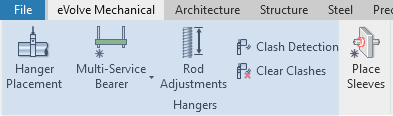

  2. Click, the Hanger Placement button
  3. Select the path(s) to place hangers on
  4. Click, Finish in the options bar
  5. Click, Ok to review the support placement results
You can also preselect the pipe or duct prior to clicking on Hanger Placement. Try using the Element Filter
